Big Leg Emma

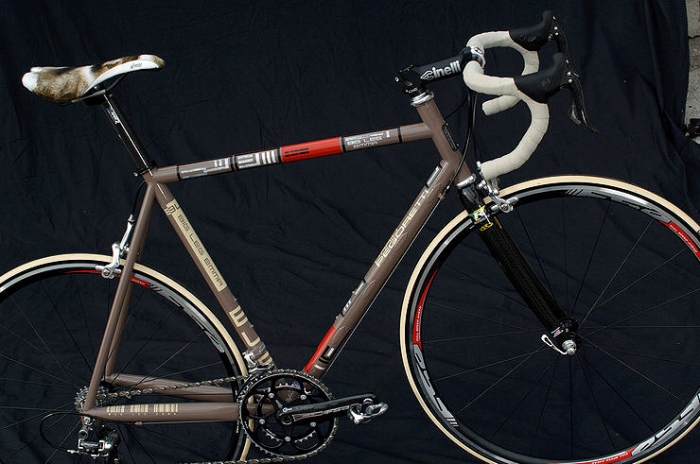

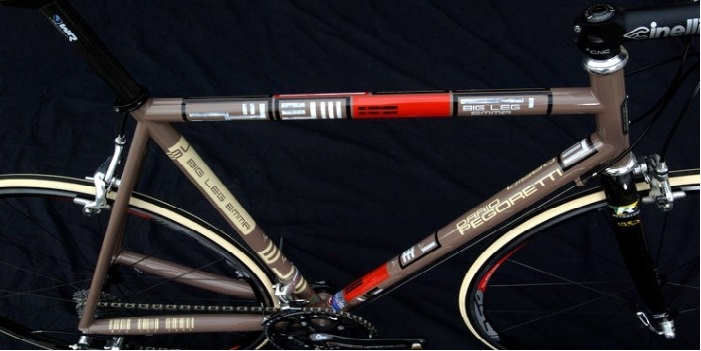

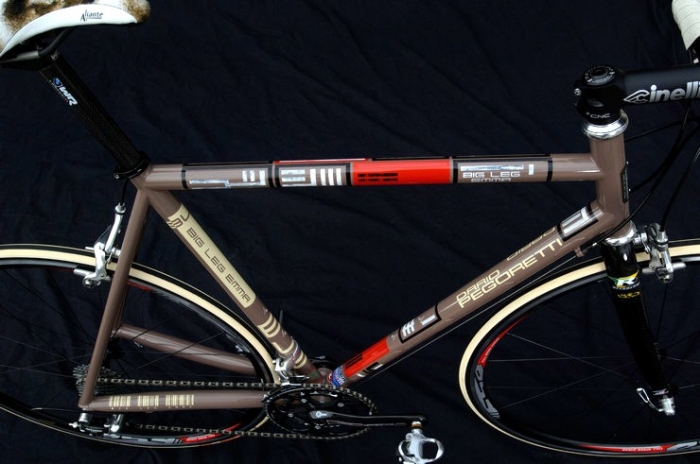

Named for the Frank Zappa/Mothers of Invention song and for Dario's mother, Big Leg Emma is based on the Marcello with the addition of oversized tubes (22mm chainstays vs. the Marcello's 18mm) and internal re-enforcing gussets.  It is, by far, the stiffest steel frame in Dario's stable and is designed for Clydesdales or over-quadded crit specialists.  If you need a 60 or 62cm frame, it is probably your baby.

After you hear it described, the design elements of the Big Leg Emma are straight forward: One, that wider diameter tubes are less prone to flexing under load. Two, the down tube and the chainstays directly effect bottom bracket deflection.  It is all pretty obvious until you add a sprinkle of Pegoretti genius.

External covers on the downt tube of the Pegoretti Big Leg Emma.To get there Dario took a page out of Falerio Masi's book (he used a similar technique to stiffen the chainstays of track bikes during the 70's) and added gussets (stiffeners) to the oversized downtube.  Prior to welding up the frame, Dario laser cuts several small grooves into either side of the downtube.  He then brazes in horizontal anti-flex plates and finishes it off by brazing ornamental covers over the incisions. At the end of the day Dario achieves his goal of an uncompromisingly stiff race frame without sacrificing vertical compliance or aesthetics.

The Big Leg Emma is available as a frameset with a FALZ carbon forkAs with all of Dario's frames except the Marcelo and the Duende, Big Leg Emma is available in all the standard, Pegoretti sizes or as a custom and (at no additional cost except for Ciaveta) in any of Dario's current palet of finishes.    We ask for a full deposit in return for which I will gently annoy the people at Gita on a weekly basis until your baby arrives.  I have no Idea how long it is going to take to get here (18 to 30 months is a guess and probably wrong) but I guarantee it will be worth the wait.

BIG LEG EMMA FEATURES

  • - Oversized Columbus Spirit Steel tube set
  • - Machined stainless steel dropouts
  • - Handmade in Italy
  • - Constant diameter oversized seat stays

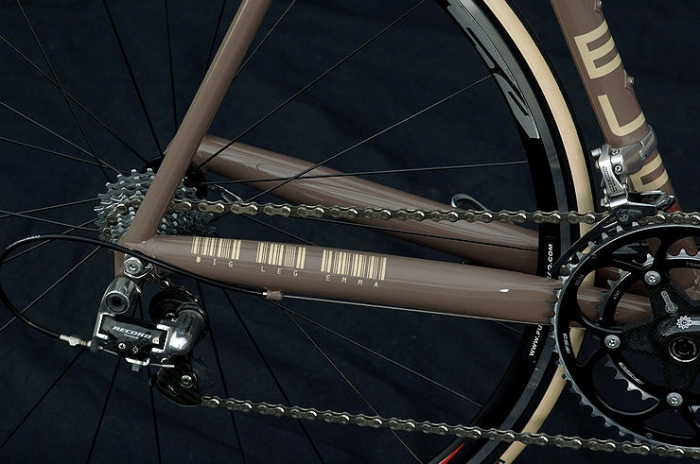

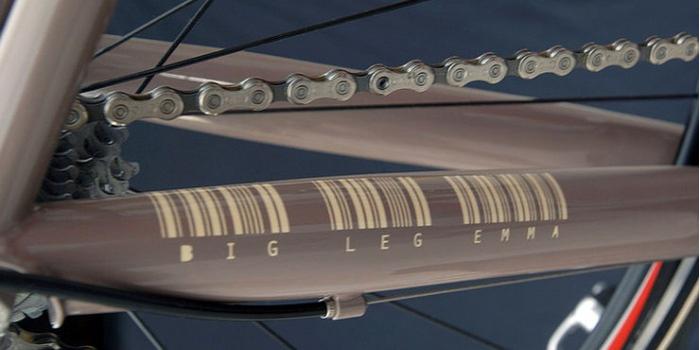

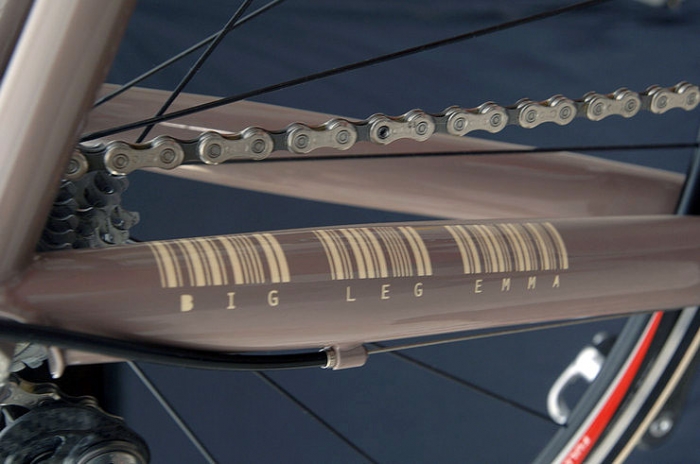

  • - 22mm oversized chain stays
  • - Italian threaded bottom bracket
  •  - 31.6 seatpost (prior to 2014, 29.4)
  •  - Braze-on front derailleur (prior to 2014, 32mm)
  • - Limited Lifetime Warranty

Frank Zappa and the Mothers sing "Big Leg Emma"

Pegoretti Geometry Chart:

Size Top Tube Setback Seat Angle Head Angle Headtube* Chainstay
48 51.5 12.8 74.5 72 11.5 40.5
49 52 13.1 74.5 72 11 40.5
50 52.5 13.8 74 72 11.8 40.5
51 53 14 74 72 12.8 40.5
52 53.5 14.3 74 72.5 13.4 40.5
53 54.3 15 73.5 73 14 40.5
54 55 15.3 73.5 73 15 40.5
55 55.8 16 73 73 16 40.5
56 56.5 16.3 73 73 17 40.8
57 57 16.6 73 73 18 41
58 57.5 17.4 72.5 73 19 41
59 58 18.2 72 73 20 41
60 58.5 18.4 72 73 21 41
61 58.7 18.8 71.5 7.27 22 41.2
62 59 19.4 71.5 72.7 23 41.2

*Stack height of a Chris King No Tread Set in 1-1/8" is 3.14cm (top and bottom together)
